| Standards | ||
|---|---|---|
| Design | BS 5351 | |
| End to End | Flange End | ASME B16.5 |
| Socketed End | ASME B16.11 | |
| Screwed End | ASME B16.11 | |
| TC End | ISO 2852 | |
| Face to Face / End to End Dimension | Flange End | ASME B16.10 |
| Pressure testing | API 598 / BS 5146 | |
| Material of Construction | Body & End Connection | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8 / ASTM A351 Gr. CF8M |
| Ball | ASTM A351 Gr. CF8 / ASTM A351 Gr. CF8M | |
| Stem | AISI 304 / AISI 316 | |
| Stem Thrust Seal | GFT / PTFE / RPTFE / CFT | |
| Stem Packing | GFT / PTFE / RPTFE / Graphite | |
| Seat | GFT / PTFE / RPTFE / CFT | |
| Stud / Bolt / Nut | AISI 304 / AISI 316 | |

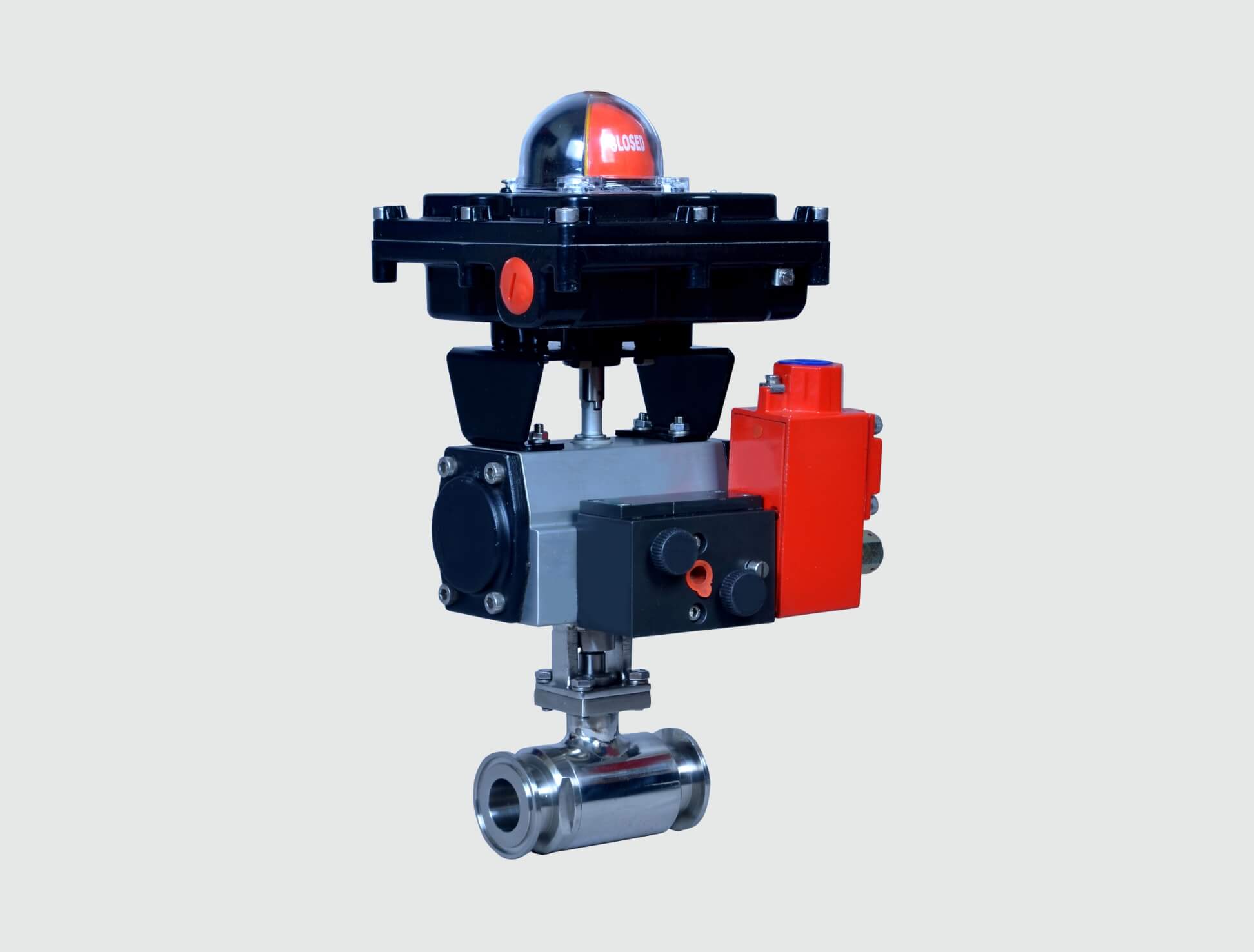

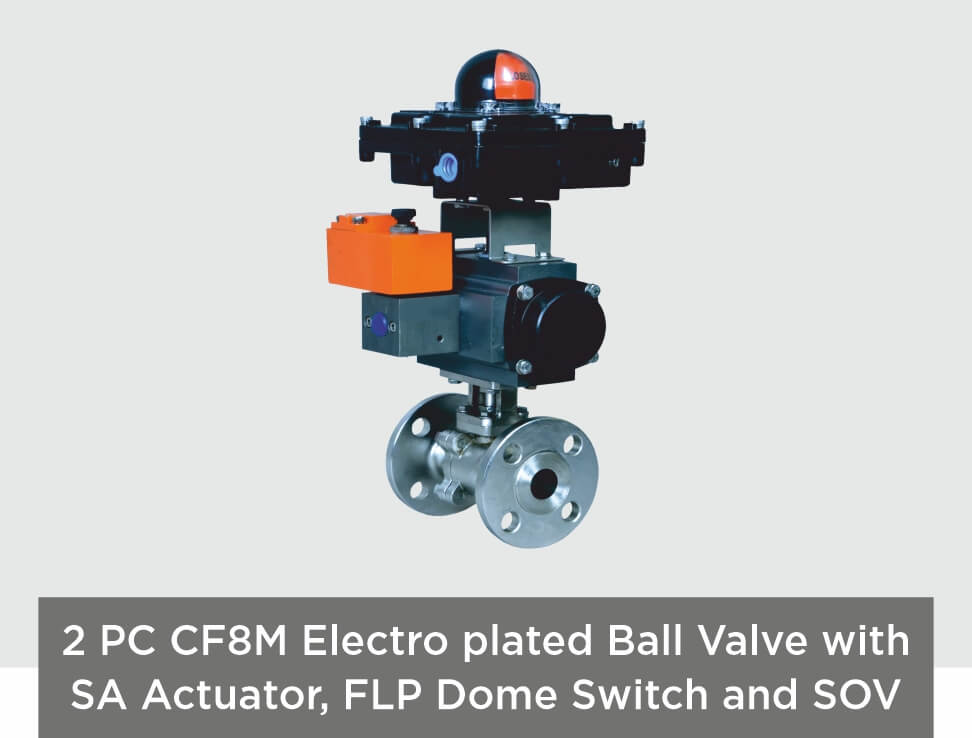

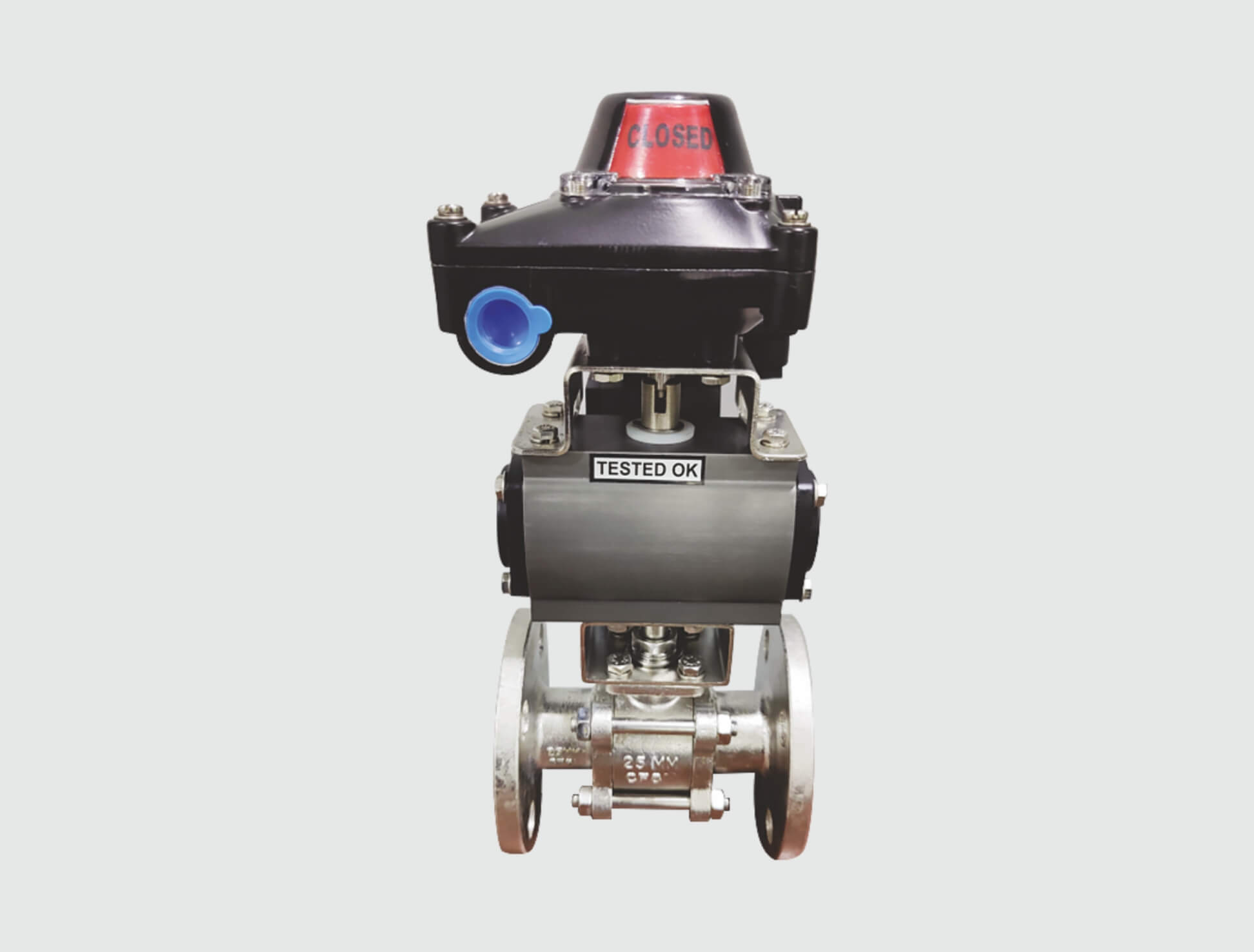

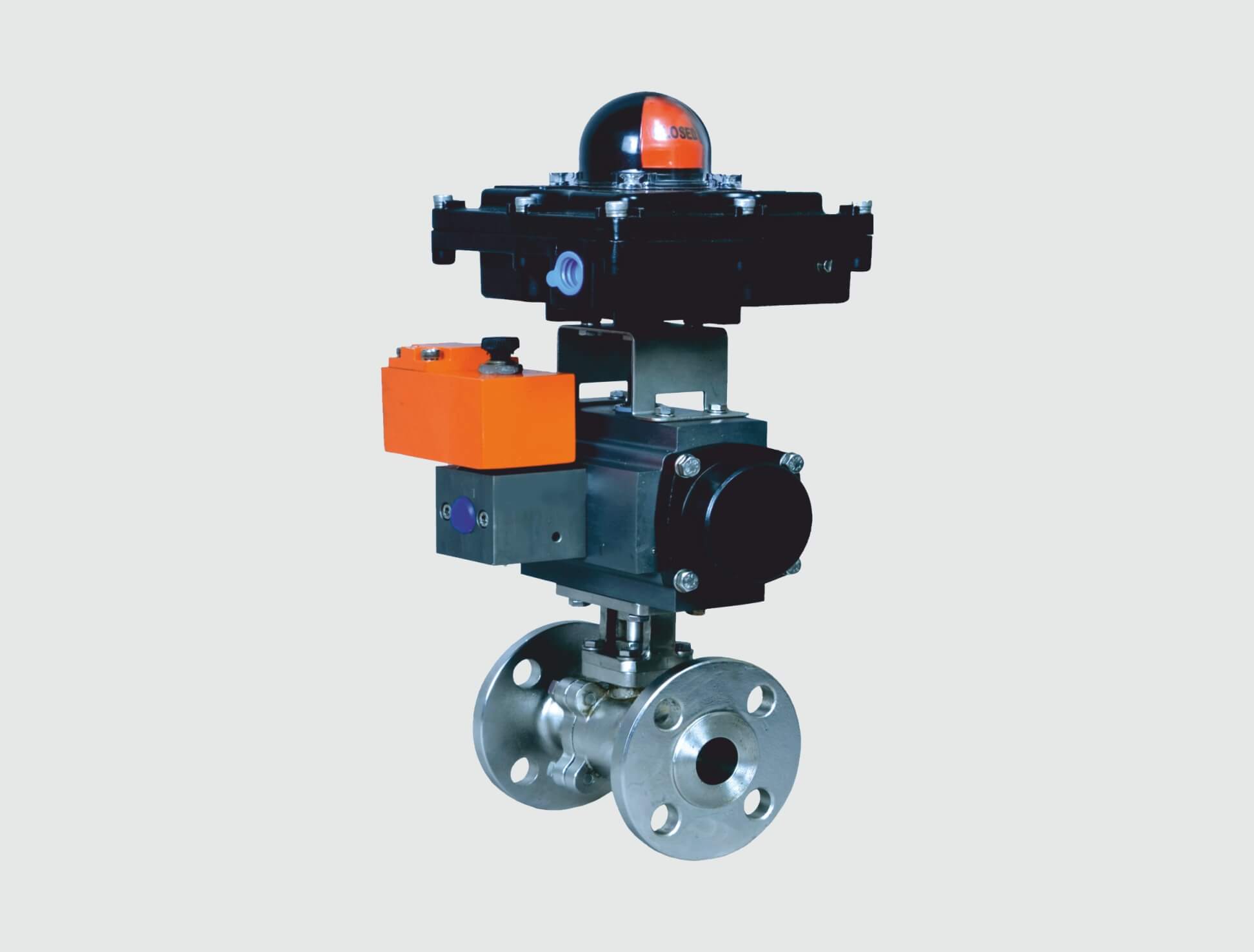

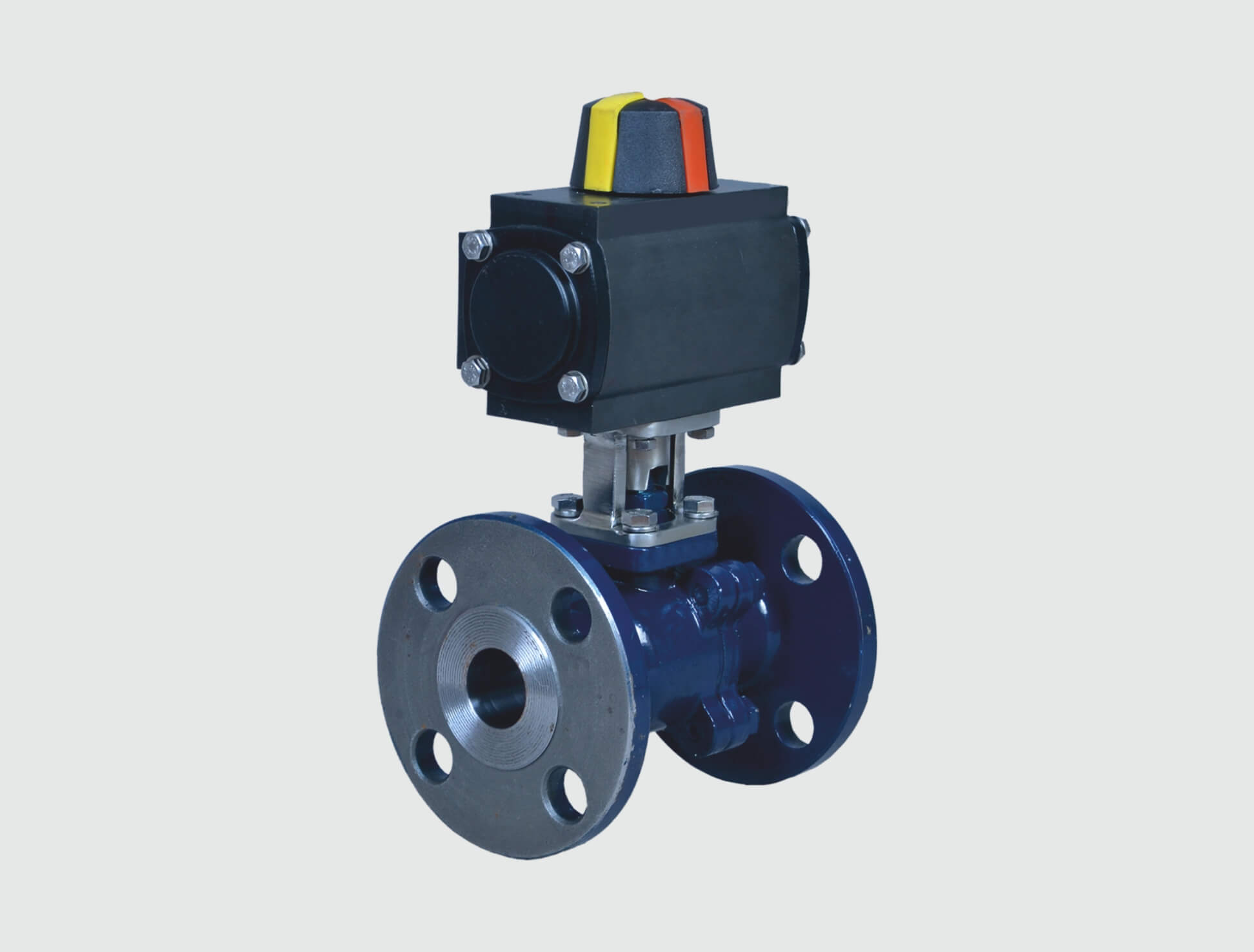

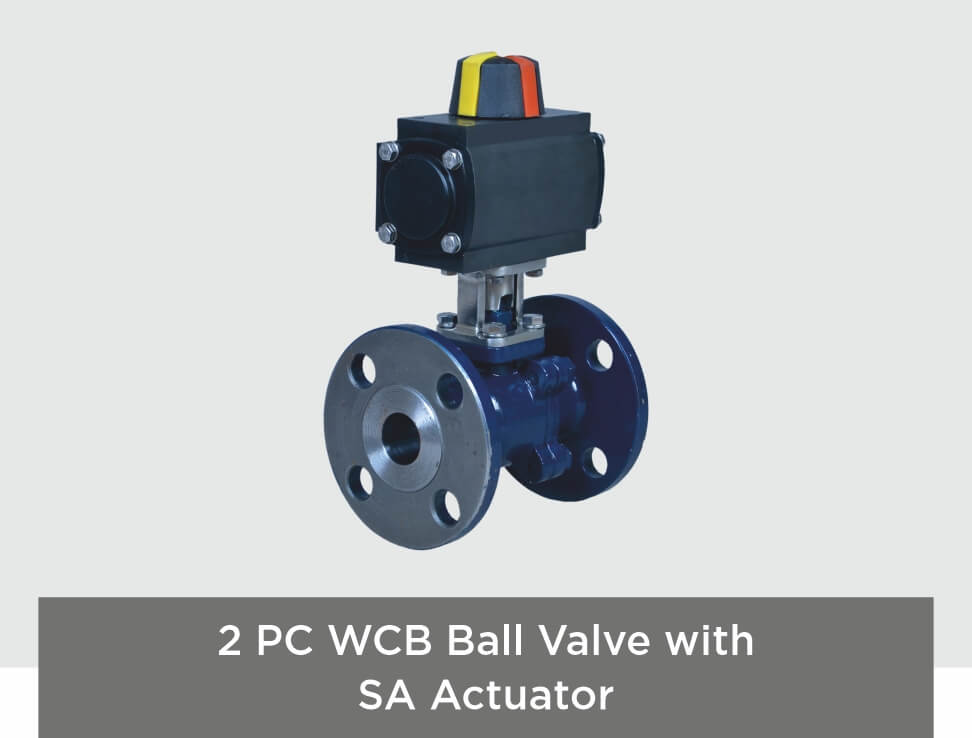

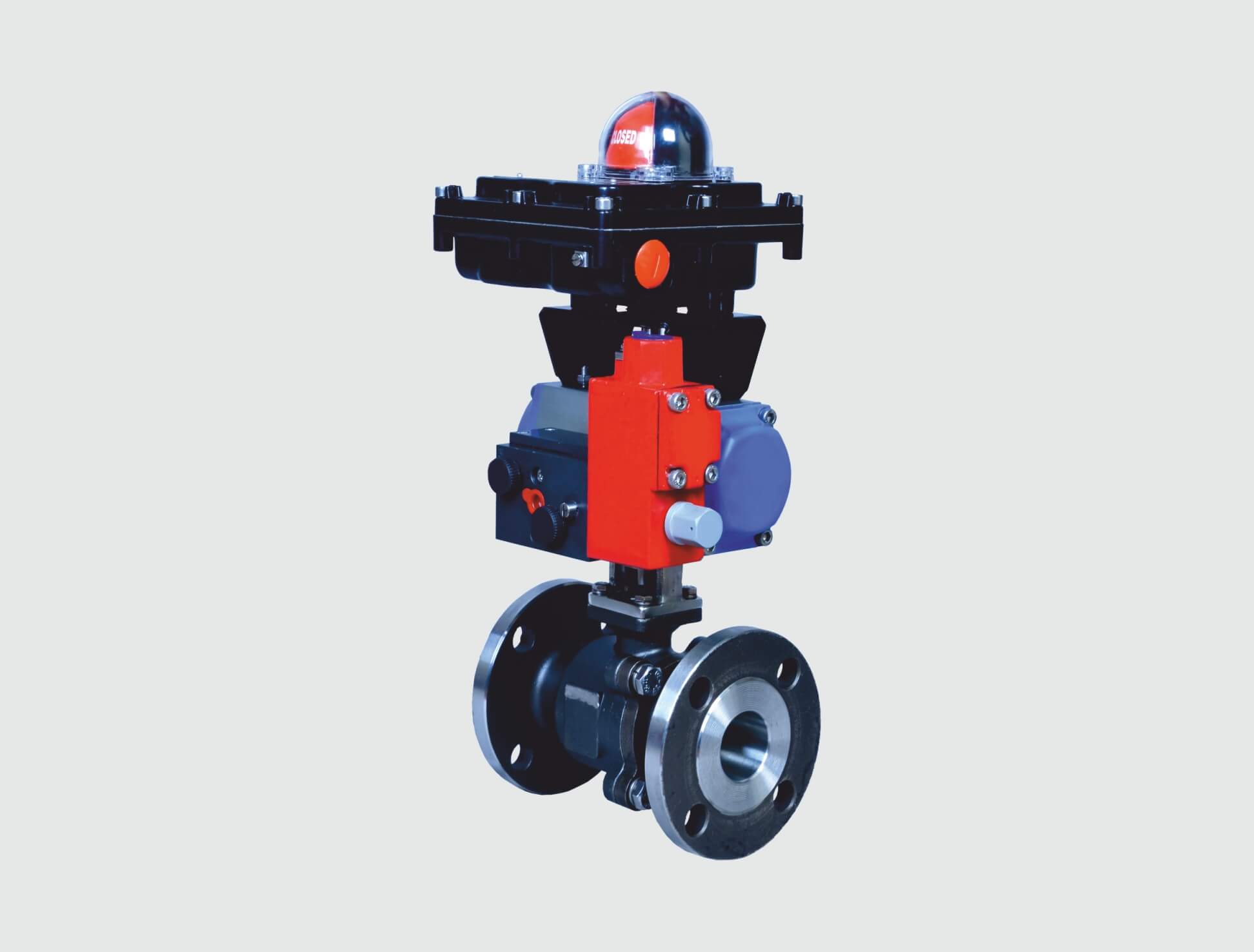

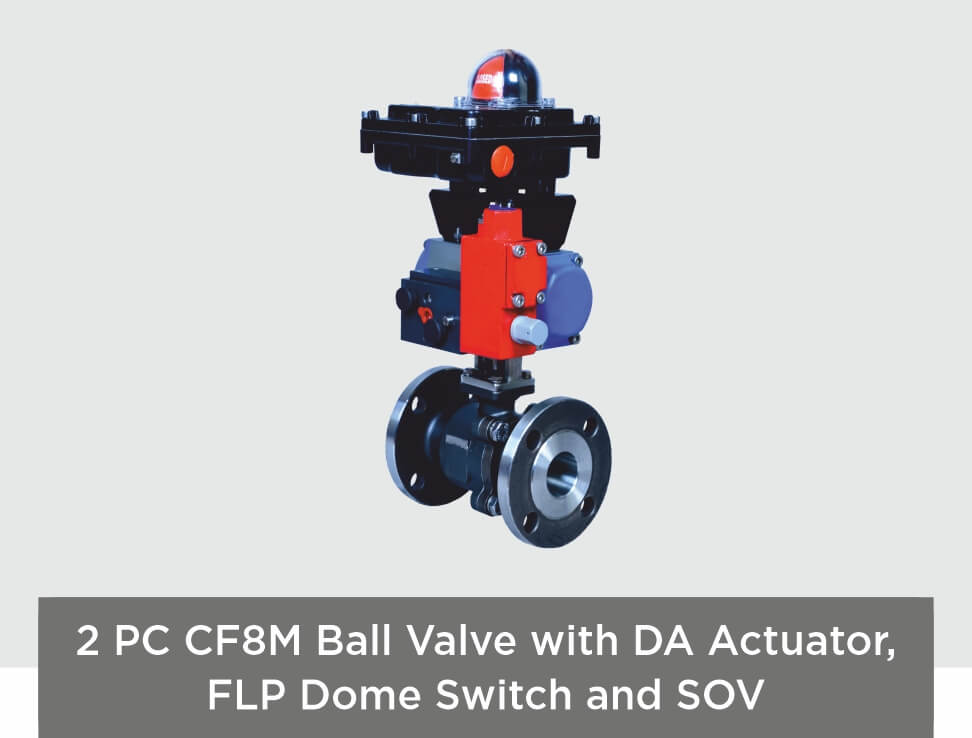

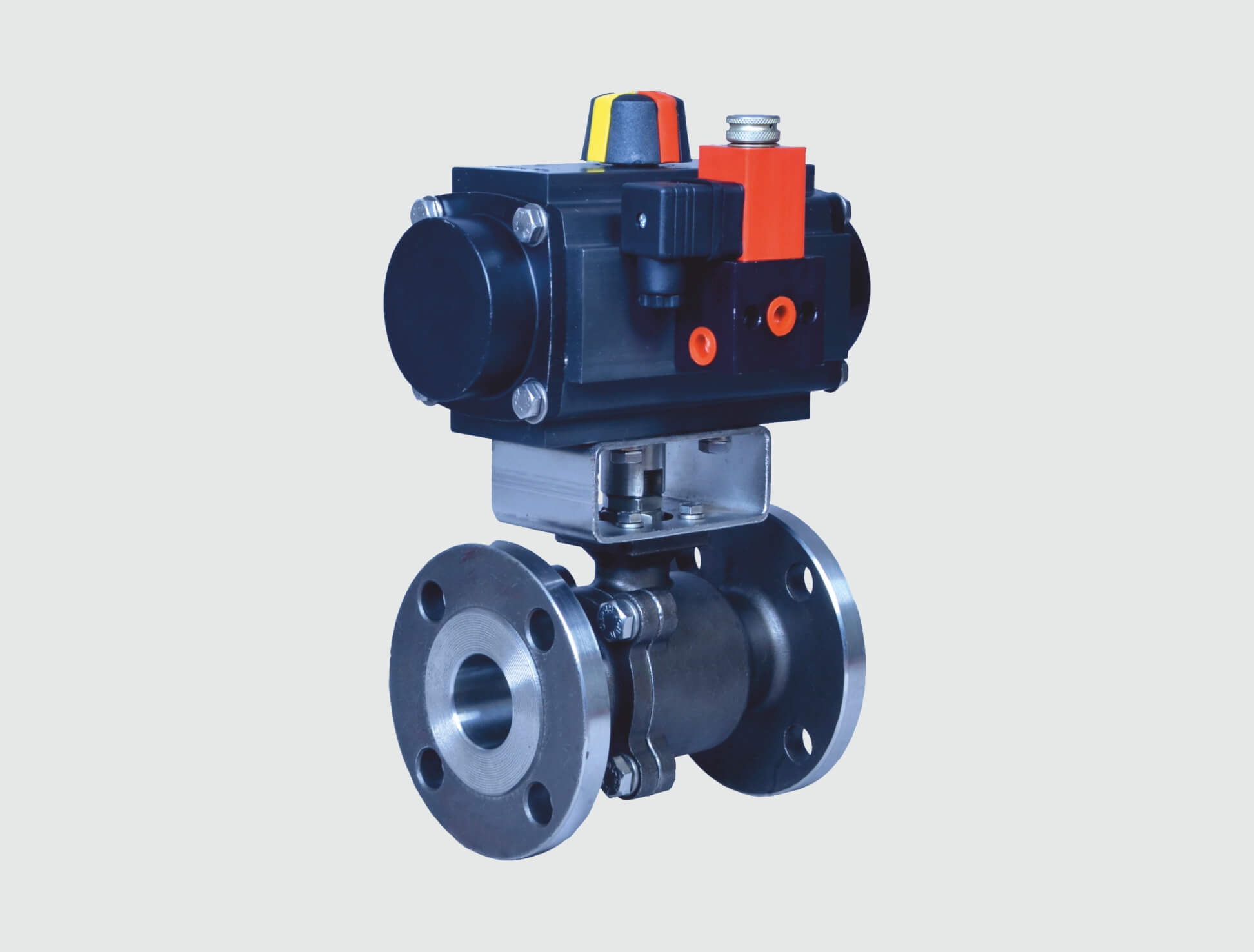

| Operation | Pneumatic Rotary Actuator | |
| Construction Type | Three Piece / Two Piece / Single Piece Ball Valve | |
| Rating | Class 150 / 300 / As per requirement | |
| Bore | Full Bore | |
| Size | 15 to 200 NB | |
| Actuator - Material of Construction | ||
| Body | Extruded Aluminium Alloy - Hard Anodised | |
| End Cap | Die Cast Aluminium - Powder Coated / Anodised | |
| Piston | Die Cast Aluminium | |
| Pinion & Shaft | Alloy Steel - Electroless Nickel Plated | |
| Shaft Bearings and Piston Guides | Derlin / PTFE | |
| Piston O Rings & Seal | Nitrile Butadiene Rubber / Silicon | |
| Spring | Spring Steel - Grade 3 | |
| Fasteners | Stainless Steel | |
| Mounting Bracket | Carbon Steel / Stainless Steel | |
| Functional Details | ||
| Actuator Operation | Pneumatically operated - 0 to 90 Deg Rotation | |
| Actuator Action | Single and Double Acting | |
| Max Torque in Nm | Up to 430 | |
| Operating Air Pressure Range in Bar | 4 to 8 | |
| Operation Temperature Range in Deg C | -20 to 80 | |
| SOV Type and Coil Voltage | Namur 24 V DC / 230 V AC Weatherproof / Flameproof | |
| SOV MOC | Aluminium / As per requirement | |
| Valve Positioner | Standard Position Indicator / Weatherproof / Flameproof Dome Switch with Open & Close Feedback Sensors / Switches |
|
| Open / Close Feed back sensor / Switch | P + F / Honeywell / As per requirement | |
| Dome Switch MOC | Aluminium | |
